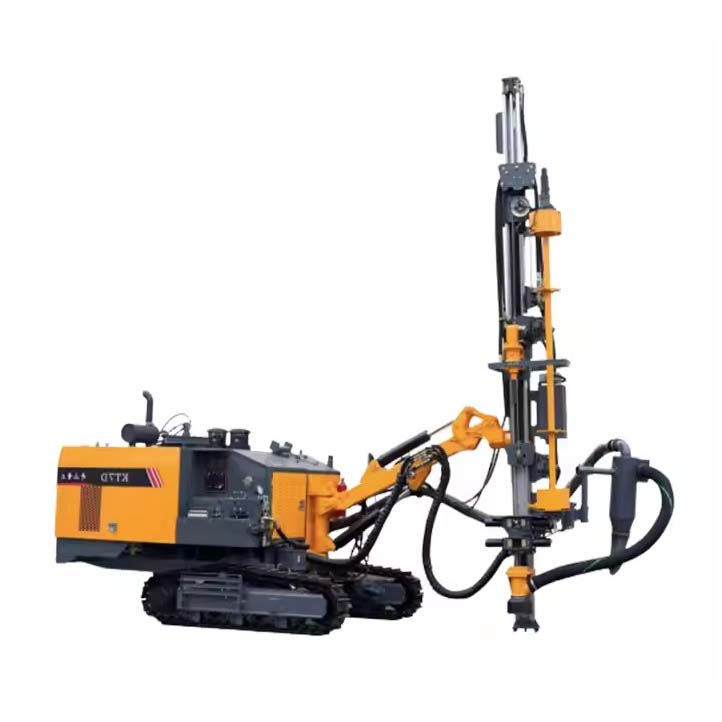

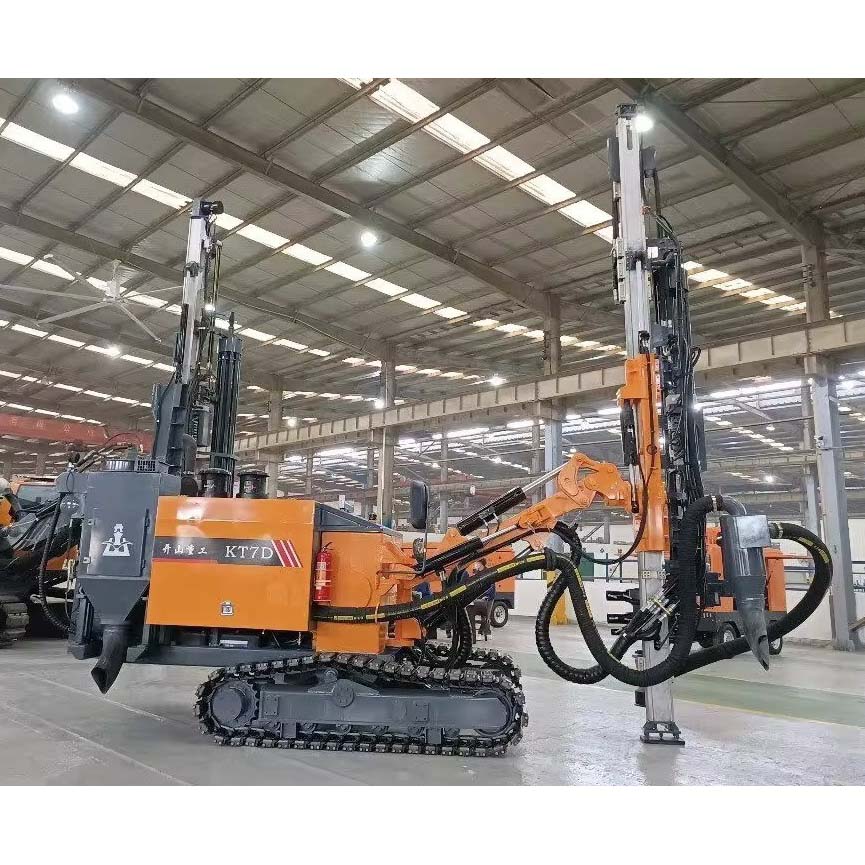

Advantages:
1, Automatically loading and unloading drill pipe, labor saving, more safety.
2, already fitted with air compressor.
3, the arm is aluminum alloy, more durable.
The large-section aluminum alloy guide rail ensures sufficient strength, and it is
equipped with a flexible and
convenient automatic loading and unloading drill pipe mechanism and drill pipe magazine
to improve work efficiency and
reduce work intensity.
The capacity of the drill pipe storage is 7+1, and the depth of the drill pipe is 24m.
The highly centralized control
console is simple and convenient in layout, and it is more intuitive and clear to judge
the status of the drilling rig.
All action instructions are clear and easy to operate.
Equipped with a dry-type high-efficiency dust collection system to provide a comfortable
working environment.
The engineering crawler is equipped with a frame leveling oil cylinder, which has strong
climbing ability and is
suitable for all kinds of rough roads.
Technical parameters
| Model |
KT7D |
| Rock hardness |
f=6-20 |
| Drilling diameter (mm) |
90 to 135 |
| Depth of economical drilling (m) |
24 |
| Travelling speed (km/h) |
0 to 3 |
| Climbing capacity |
≤25 degree |
| Ground clearance (mm) |
430 |
| Power |
176 KW |
| Speed |
2200 rpm |
| Engine |
Yuchai YCA07240-T300 |
| Screw air compressor capacity |
15 cubic meter/min |
| Discharge pressure (bar) |
18 |
| Dimension (LxDxH) |
8000x2300x2700 mm |
| Weight (kg) |
10000 |
| Rotor speed |
0 to 180 rpm |
| Rotary torque (Max) N.m |
1560 |
| Maximum Push-Pull Force |
22000 N |
| Propulsion way |
Oil cylinder + flat chain |
| Lifting angle of drill boom |
Up 48 degree, down 16 degree |
| Tilt angle of beam |
147 degree |
| Swing angle of carriage |
Right 53 degree, left 52 degree |
| Swing angle of drill boom |
Right 50 degree, left 58 degree |
| Leveling angle of frame |
Up 10 degree, down 10 degree |
| One time advance length |
3590 mm |
| Compensation length |
900 mm |
| DTH hammer |
3 inch, 4 inch |
| Drilling rod |
ф64*3000 mm, ф76*3000 mm |
| Number of rods |
7+1 |
| Method of dust collecting |
Dry type (Hydraulically driven cyclone laminar flow) |
