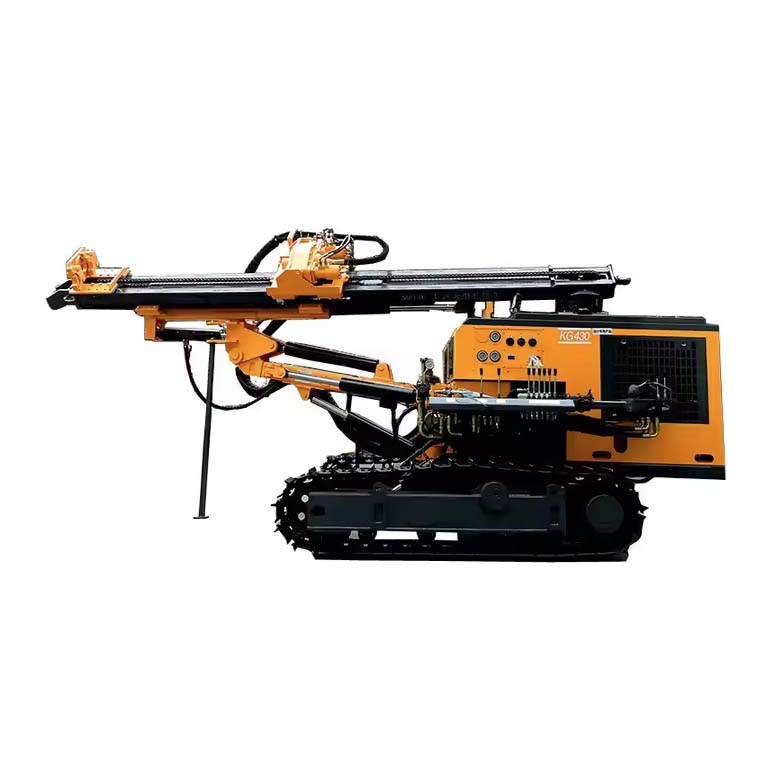

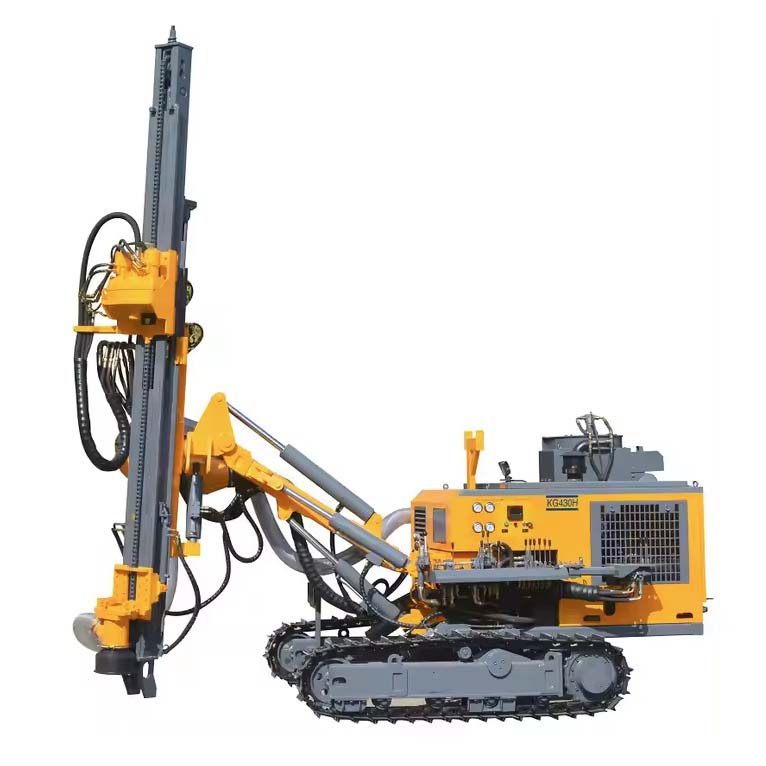

The KG430, KG430H down the hole drill rig for open use is an improved device in
compliance with national regulations on
environmental protection. Equipped with Yuchai engine(China III), the drill rig meets
national standards for emissions
and environment.
The tramming motor of plunger piston and four-wheel drive improve
the working pressure and climbing
capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the
requirements of limiting position
use. Meanwhile, the hydraulic system is improved, thereby proving increased system flow
and rotary speed.
The hydraulic
cylinder has been optimized, thus making it more reliable. The guide rail is installed
in an inclined way, making
operations and observations easier.
The thickened profile is used for the housing;
and the additional ring makes
handling and lifting convenient.
Technical parameters
| Model |
KG430 |
KG430H |
| Transport dimension (mm) |
6300x2250x2700 |
6300x2400x2700 |
| Weight (kg) |
5250 |
5700 |
| Rock hardness |
f=6-20 |
| Drilling diameter (mm) |
90 to 152 |
| Depth of economical drilling (m) |
25 |
| Roatory speed (rpm) |
0 to 90 |
| Rotary torque (Max) N.m |
5000 |
| Lifting force (KN) |
40 |
| Propulsion way |
Oil cylinder + roller chain |
| Feed stroke |
3175 mm |
| Travelling speed (km/h) |
0 to 2.5 |
| Climbing capacity |
≤30 degree |
| Ground clearance (mm) |
500 |
| Tilt angle of beam |
Down 110 degree, up 35 degree, total 145 degree |
| Swing angle of boom |
Left 91 degree, Right 5 degree, total 96 degree |
| Pitch angle of drill boom |
down 55 degree, up 15 degree, total 70 degree |
| Swing angle of drill boom |
Left 32 degree, Right 32 degree, total 64 degree |
| Leveling angle of track |
±10 degree |
| Compensation length of beam |
900 mm |
| Supporting power |
Yuchai YC4DK80-T302 |
Yuchai YC4DK100-T304 |
| Rated power |
58KW |
73KW |
| Rated revolving speed |
2200 rpm |
2200 rpm |
| DTH hammer |
4 inch |
| Drilling rod |
ф76*2 m, ф76*3 m |
| Air consumption |
13 to 20 cubic meter/min |
| Maximum height of horizontal hole |
2850 mm |
| Minimum height of horizontal hole |
350 mm |
