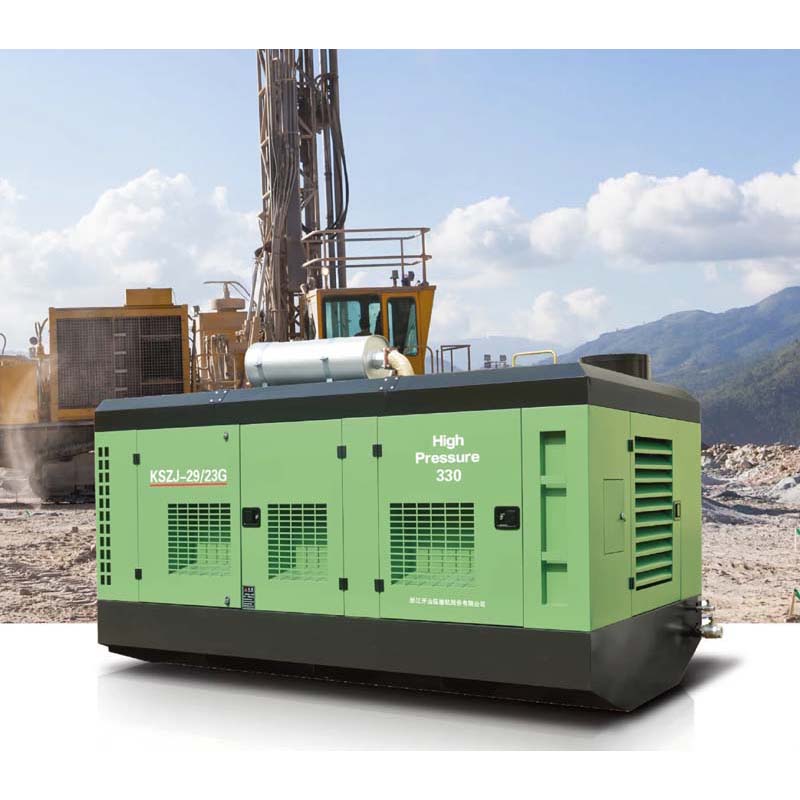

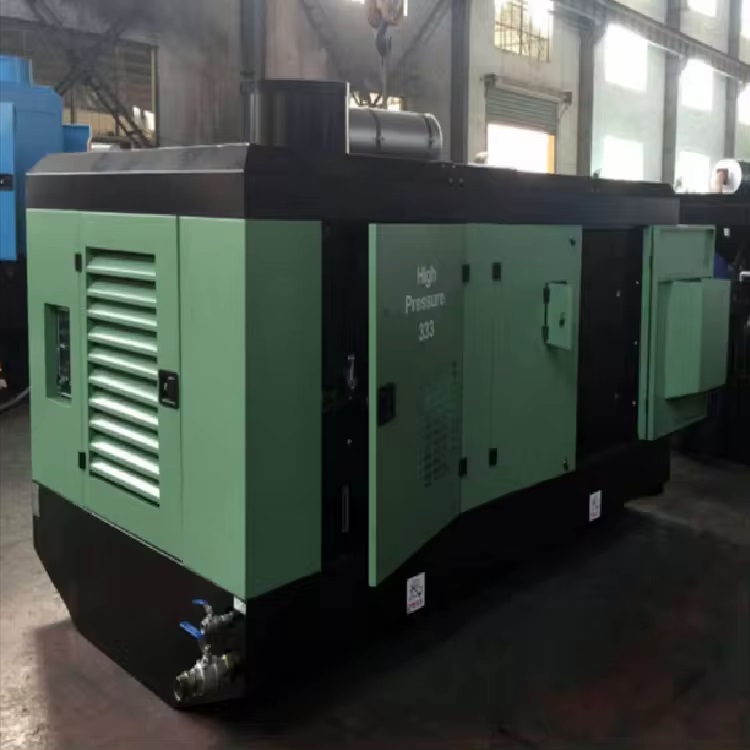

Stationary screw Air Compressor for well drilling diesel engine KSZJ-18

Diesel stationary screw air compressor, which are widely used in highway, military industry and other industries. Highly reliable and efficient,This diesel screw air compressor is availble in a complete range of models.It's power ranges between 37kw and 300kw.Its air capacity is 30m3/min with the discharge pressure up to 2.2Mpa.
Characteristic of air compressor for water well drilling rig:
1, Low operating sound and less vibration design.Easy serviceability.
2, Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3, High efficient Airend: Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine, more longer lifespan.
4, Diesel Engine of Famous Brand: Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission, requirement of Europe, low oil consumption, after sale service system all over China.
5, Good adaptability: The Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.
6, World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime


7, Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
8, Conplete protection function with fault alarm and indication.
9, Efficient filtering and seperating system.
10, Large oilfter cooler ensures the machines in good operation temperature when the ambient temperature is high.
11, Efficient air-cooled enclosed motor.
12, Super low noise.
Application scope of air compressor for water well drilling rig, This air compressor is especially designed for water conservancy.


Technical parameters
Model Working Pressure
(mpa)		 Air Capacity
(m3/min)		 Engine Power(HP) Air Outlet
Connector		 Weight(kg) Dimension(LxWxH mm)
KSZJ-18/17A 1.7 18 Yuchai 220 HP G2x1, G3/4x1 2200 2800x1520x1780
KSZJ-18/18 1.8 18 Yuchai 260 HP G2x1, G3/4x1 2700 3050x1800x1800
KSZJ-29/23G 2.3 29 Yuchai 400 HP G2x1, G3/4x1 4050 3500x1950x2030
KSZJ-29/23-32/17 1.7 to 2.3 29 to 32 Yuchai 400 HP G2x1, G3/4x1 4050 3500x1950x2030
KSZJ-35/25-38/20 2.5 to 2.0 35 to 38 Yuchai 550 HP G2x1, G3/4x1 4500 3500x1950x2320
KSZJ-35/25-38/20K 2.5 to 2.0 35 to 38 Cummins 550 HP G2x1, G3/4x1 4500 3500x1950x2200
