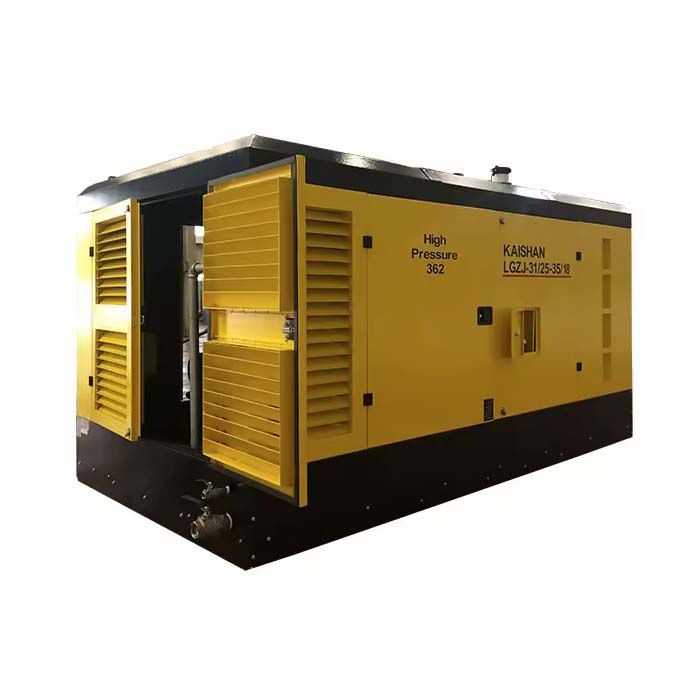

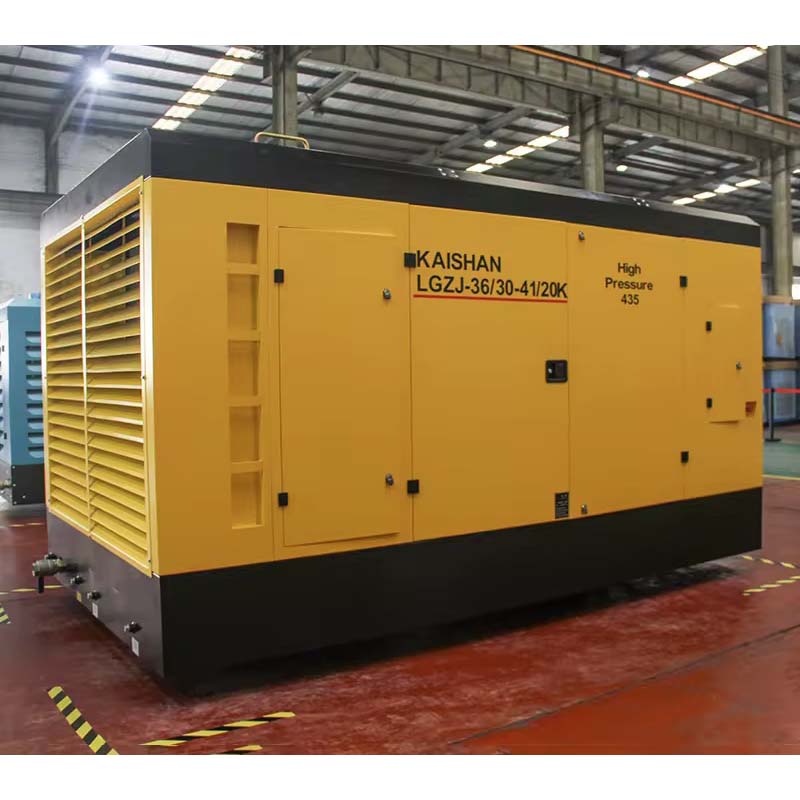

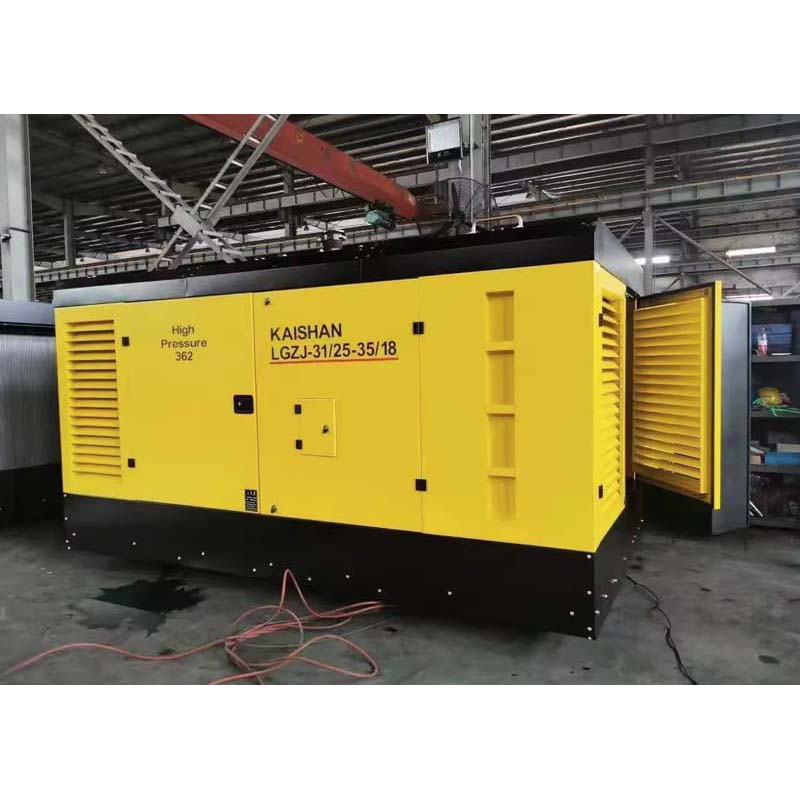

screw air compressor for deep well drilling rig LGZJ-31

LGZJ series portable diesel air compressor especially suitable for oil and gas field drilling operation.
LGZJ series air compressor uses the world's advanced screw compressor, which has the characteristics of high efficiency, low maintenance and long service life. The control system is a microcomputer control system, which automatically controls the start and top of the machine, regulates the air capacity, and has the comprehensive protection function of fault alarm and indication. The high-efficiency filter separation system enables the air compressor to work stably in the harsh environment, The large-scale oil aftercooler in the air compressor ensures that the machine is at the good working temperature under the very high ambient temperature. The noise of the high-efficiency air-cooled enclosed motor in the air compressor is extremely low when it is used.
The LGZJ series air compressor is the good power supply equipment for drilling water wells.


Characteristic of air compressor for water well drilling rig:
1, Low operating sound and less vibration design.Easy serviceability.
2, Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3, High efficient Airend, large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan.
4, Diesel Engine of Famous Brand, Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission requirement of Europe, low oil consumption.
5, Good adaptability, the Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.


Technical parameters
Model Working Pressure
(mpa)		 Air Capacity
(m3/min)		 Engine Power(HP) Air Outlet
Connector		 Weight(kg) Dimension(LxWxH mm)
LGZJ-31/25-35/18 2.5 to 1.8 31 to 35 Yuchai 400 HP G2x1, G3/4x1 4500 3650x2000x2200
LGZJ-36/30-41/20 3.0 to 2.0 36 to 41 Yuchai 560 HP G2x1, G3/4x1 6000 3800x2160x2300
LGZJ-36/30-41/20K 3.0 to 2.0 36 to 41 Cummins 550 HP G2x1, G3/4x1 5800 3800x2160x2330
LGZJ-30/35-35/25 3.5 to 2.5 30 to 35 Yuchai 560 HP G2x1, G3/4x1 6000 3800x2160x2300
LGZJ-30/35-35/25K 3.5 to 2.5 30 to 35 Cummins 550 HP G2x1, G3/4x1 5800 3800x2160x2330
LGCG-43/25-37/35 2.5 to 3.5 43 to 35 Yuchai 775 HP G2x1, G3/4x1 7000 4160x2200x2257
