Special engine with strong power, equipped with heavy-duty specialized diesel engines
such as Yuchai and Cummins,
achieving the best combustion state throughout the entire range of engine operation, the
product has higher reliability,
stronger power, and better fuel economy.
According to the use of the pressure air volume adjustment device, the air compressor
suction volume and the diesel
engine speed are automatically and steplessly adjusted. Makes the air supply and
consumption completely match, so as to
achieve the good effect with the fuel consumption. Fully enclosed chassis and silent
cover design, low operating noise.
Technical parameters
| Model |
Working Pressure
(mpa) |
Air Capacity
(m3/min) |
Engine Power(HP) |
Air Outlet
Connector |
Weight(kg) |
Dimension(LxWxH mm) |
| KSCY-220/8X |
0.8 |
6 |
Xichai 75 HP |
G1 1/4x1, G3/4x1 |
1400 |
3240x1760x1850 |

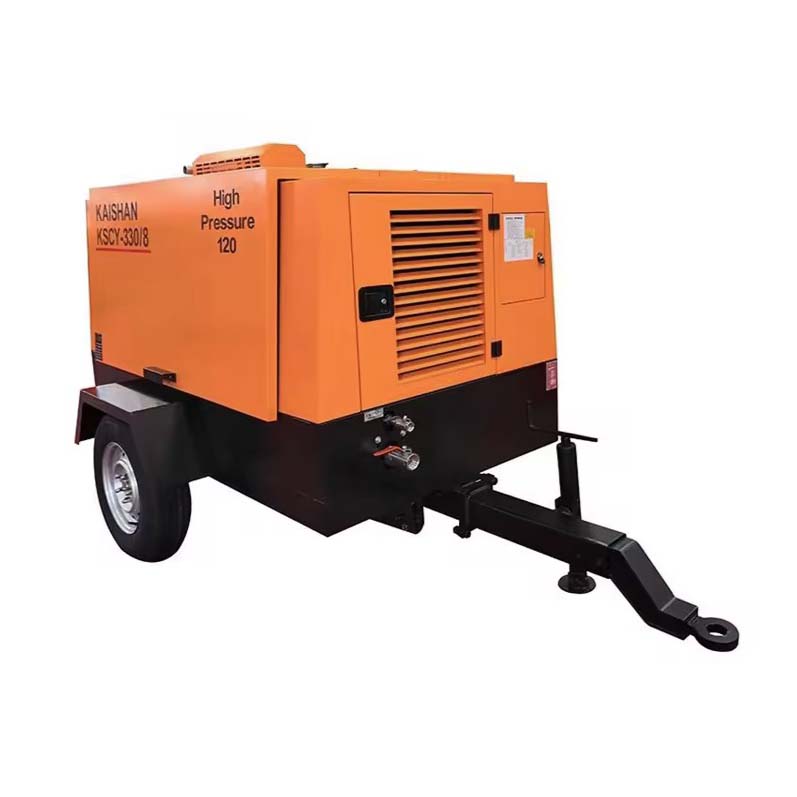

| KSCY-330/8 |
0.8 |
9 |
Yuchai 120 HP |
G1 1/4x1, G3/4x1 |
1550 |
3240x1760x1785 |
| KSCY-330/8K |
0.8 |
9 |
Cummins 125 HP |
G1 1/4x1, G3/4x1 |
1830 |
3580x1700x1962 |
| KSCY-425/10 |
1 |
12 |
Yuchai 160 HP |
G1 1/4x1, G3/4x1 |
1880 |
3300x1880x2100 |
| KSCY-425/10K |
1 |
12 |
Cummins 150 HP (China II) |
G1 1/4x1, G3/4x1 |
1830 |
3580x1700x1962 |

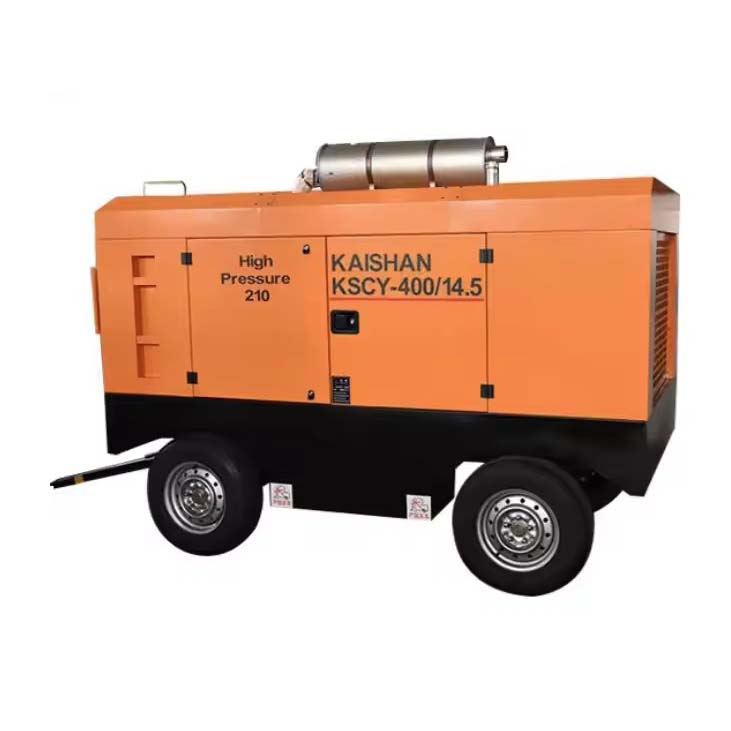

| KSCY-400/14.5 |
1.5 |
11 |
Yuchai 160 HP |
G1 1/4x1, G3/4x1 |
1880 |
3300x1880x2100 |
| KSCY-400/14.5K |
1.5 |
11 |
Cummins 150 HP (China II) |
G1 1/4x1, G3/4x1 |
1830 |
3580x1700x1962 |

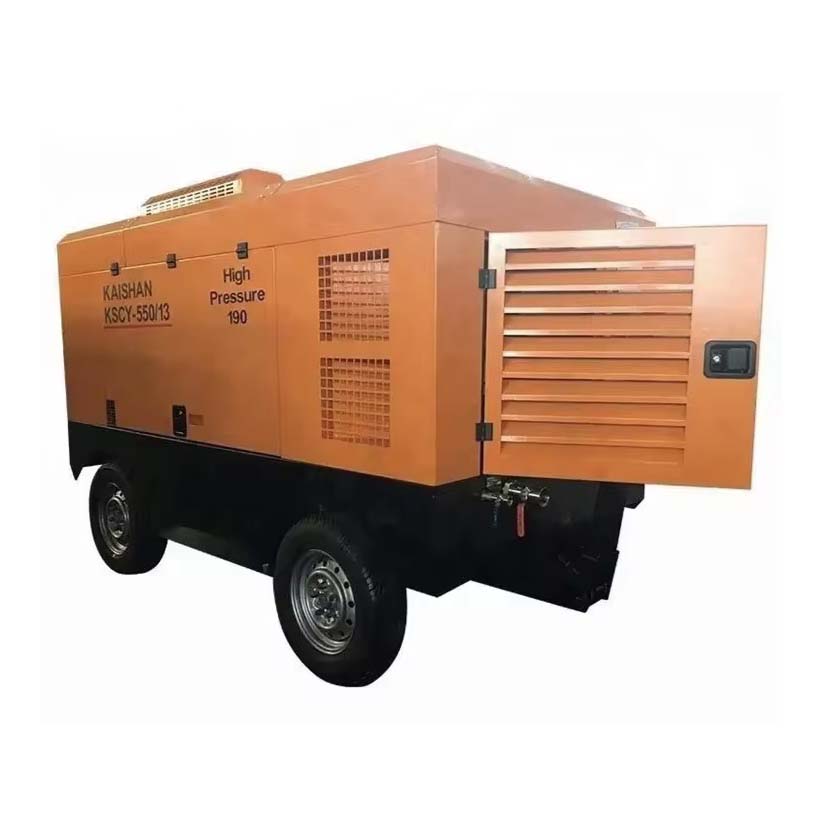

| KSCY-550/13 |
1.3 |
15 |
Yuchai 190 HP (4 cylinder) |
G1 1/4x1, G3/4x1 |
2400 |
3000x1520x2200 |
| KSCY-550/13K |
1.45 |
15 |
Cummins 180 HP (China II) |
G1 1/4x1, G3/4x1 |
2000 |
3500x1880x2100 |
| KSCY-570/12-550/15 |
1.2 to 1.5 |
16 to 15 |
Yuchai 190 HP (6 cylinder) |
G1 1/4x1, G3/4x1 |
2400 |
3300x1880x2100 |
| KSCY-570/12-550/15K |
1.2 to 1.5 |
16 to 15 |
Cummins 180 HP |
G1 1/4x1, G3/4x1 |
2000 |
3500x1880x2100 |
| KSCY-560/15 |
1.5 |
16 |
Yuchai 220 HP |
G2x1, G3/4x1 |
2400 |
3000x1520x2200 |
| KSCY-650/20-700/17T |
2.0 to 1.7 |
18 to 19 |
Yuchai 260 HP |
G2x1, G3/4x1 |
2800 |
3000x1520x2300 |
| KSCY-650/20-700/17TK |
2.0 to 1.7 |
18 to 19 |
Cummins 260 HP |
G2x1, G3/4x1 |
2700 |
3000x1520x2390 |
| KSCY-750/20-800/17T |
2.0 to 1.7 |
20 to 22 |
Yuchai 310 HP |
G2x1, G3/4x1 |
3900 |
3300x1800x2300 |
| KSCY-24/23 (without brake) |
2.3 |
24 |
Yuchai 340 HP |
G2x1, G3/4x1 |
4500 |
3700x1950x2750 |
| KSCY-24/23 (with brake) |
2.3 |
24 |
Yuchai 340 HP |
G2x1, G3/4x1 |
4500 |
3700x1950x2750 |
