Convenient operation and maintenance, high degree of automation, operators do not have
to undergo a long time of
professional training, can achieve unattended operation.
Power balance is good, no unbalanced inertia force, smooth and high-speed operation, the
realization of no basic
operation, especially suitable for mobile compressor, small volume, light weight, less
area.
Strong adaptability, with the characteristics of forced gas transmission, volume flow is
almost unaffected by exhaust
pressure, and can be maintained at a wide speed range.
Technical parameters
| Model |
Working Pressure
(mpa) |
Air Capacity
(m3/min) |
Engine Power(HP) |
Air Outlet
Connector |
Weight(kg) |
Dimension(LxWxH mm) |
| KSDY-13.6/8 |
0.8 |
13.6 |
75 |
G2x1, G3/4x1 |
1750 |
2700x1700x1700 |
| KSDY-12.5/10 |
1.0 |
12.5 |
75 |
G2x1, G3/4x1 |
1750 |
2700x1700x1700 |
| KSDY-10/14.5 (two wheels) |
1.45 |
10.0 |
75 |
G2x1, G3/4x1 |
1600 |
2500x1530x1700 |
| KSDY-16.5/8 |
0.8 |
16.5 |
90 |
G2x1, G3/4x1 |
1940 |
2730x1680x1800 |

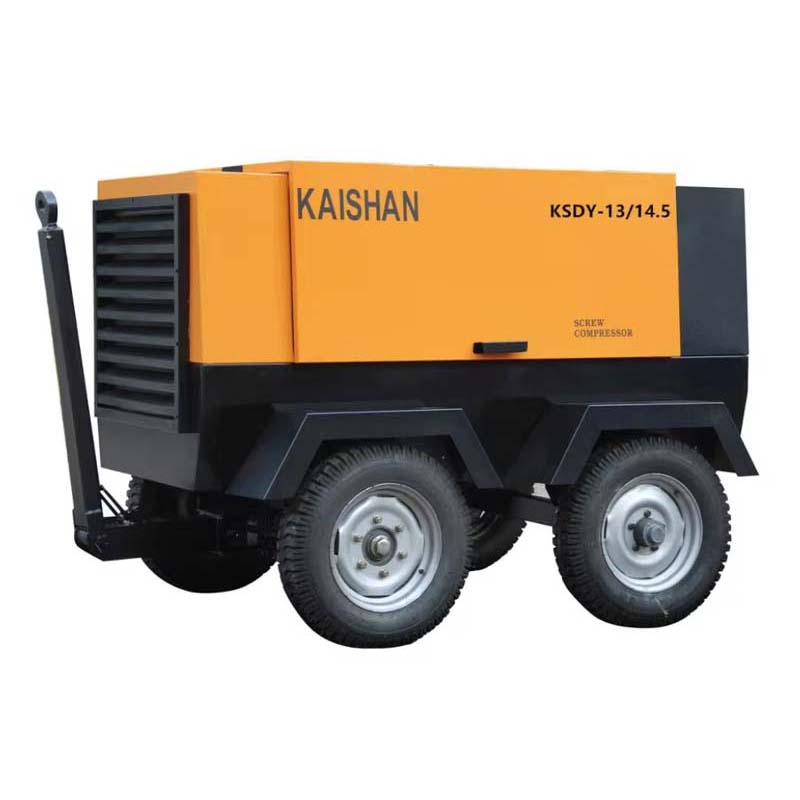

| KSDY-13/14.5 (two wheels) |
1.45 |
13.0 |
90 |
G2x1, G3/4x1 |
1760 |
2700x1670x1800 |
| KSDY-13/14.5 (four wheels) |
1.45 |
13.0 |
90 |
G2x1, G3/4x1 |
1910 |
2730x1680x1800 |
| KSDY-20/8 |
0.8 |
20.0 |
110 |
G2x1, G3/4x1 |
3115 |
3065x1835x2000 |
| KSDY-16.5/12 |
1.2 |
16.5 |
110 |
G2x1, G3/4x1 |
3000 |
3065x1835x2000 |
| KSDY-24/8 |
0.8 |
24.0 |
132 |
G2x1, G3/4x1 |
3150 |
3065x1835x2000 |
| KSDY-18/13 |
1.3 |
18.0 |
132-2 Poles |
G2x1, G3/4x1 |
3070 |
3065x1835x2000 |
| KSDY-15/17 |
1.7 |
15.0 |
132-2 Poles |
G2x1, G3/4x1 |
2975 |
3065x1835x2000 |
| KSDY-22/18-II |
1.8 |
22.0 |
132-4 Poles |
G2x1, G3/4x1 |
3700 |
3400x1620x2200 |
| KSDY-20/18-II |
1.8 |
20.0 |
132-2 Poles |
G2x1, G3/4x1 |
3100 |
3400x1620x2200 |
