Single stage air compressor with two stage motor.
The below models, LGCY-5/8 two tank is diesel, other models is electric. the below
models all have two tanks, double
tanks.
The newly developed environmental protection and energy conservation, transition to
facilitate LGY electric double tank
screw air compressor, small reciprocating air compressor replacement upgrade. To make
your production building more
humane, professional, and provide great convenience for you in mine construction.
1, Remarkable Air end, SKK series Air End. The main rotor is five gears and the vice
rotor is six gears. As to
differences between them is small, the loss of circumfluence is small which increases
the cubage efficiency by close to
20% and save the electric currency by about 25% compared to normal screw air
compressor.
2, The rotor, supported by ball bearing and rod bead bearing and operating at a low
speed, so it can lower the
maintenance cost and provide the air end with a longer service life.
3, Air Intake valve, controlled by computer, the stable and dependable air displacement,
air inlet control valve can
make the air displacement and power consumption of the motor change along with the air
consumption, so as to save energy
and electricity, and reduce the operating cost.
4, Oil and gas separator, screw shaped design of oil and gas separator is easy to
uninstall and change. Separator core
can separate the left oil in the process of compressing air. After separating, the left
oil will be about 1 to 2 ppm,
this will increase the cleanness of the compressed air and lower the pollution to the
compressed air and equipment.
5, Oil filters, high efficient oil separator can remove the impurity from the lubricant
and provide clean lubricant for
the pump,rotor and bearing.
6, Cooling system, the designed super cool area ensure it working normally at high
temperature and hot environment.Good
transfer performance, little flow resistance and low request for water quality. It is
convenient to clean and need no
special cleaning fluid.
7, Temperature Controller Valve, designed specially for the high environment temperature
and high air humidity, upon
cold start up, thermal valve enables the system to reach the best working temperature as
soon as possible, and maintains
constant temperature and viscosity of lubricant to prevent condensing of evaporated gas
and emulsification of the
lubricant, which prolongs the service life of the lubricant,rotor of the main machine,
bearing and other parts.
| Model | Working Pressure (mpa) |
Air Capacity (m3/min) |
Engine Power(HP) | Air Outlet Connector |
Weight(kg) | Dimension(LxWxH mm) |
|---|---|---|---|---|---|---|
| LGY-2.8/8T | 0.8 | 2.8 | 15 | G1 | 254 | 1160x760x920 |
| LGY-2.8/8 | 0.8 | 2.8 | 15 | G1x2 | 350 | 1485x815x1005 |
| LGY-2.4/10 | 1.0 | 2.4 | 15 | G1x2 | 350 | 1485x815x1005 |
| LGY-3.6/8G | 0.8 | 3.6 | 18.5 | G1x2 | 360 | 1550x900x1130 |
| LGY-3.6/10G | 1.0 | 3.6 | 22 | G1x2 | 380 | 1550x900x1130 |

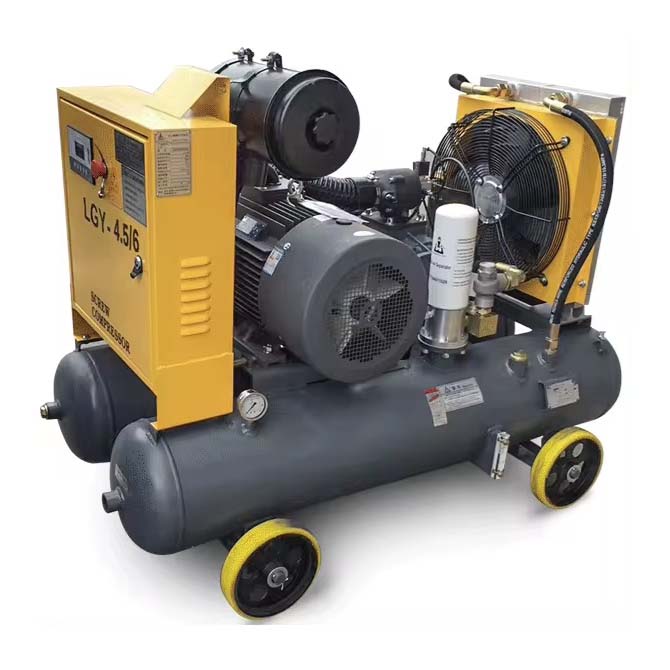

| LGY-4.5/6 | 0.6 | 4.5 | 22 | G1x2 | 420 | 1480x900x1115 |
| LGY-4.8/10 | 1.0 | 4.8 | 30 | G1x2 | 440 | 1480x900x1115 |

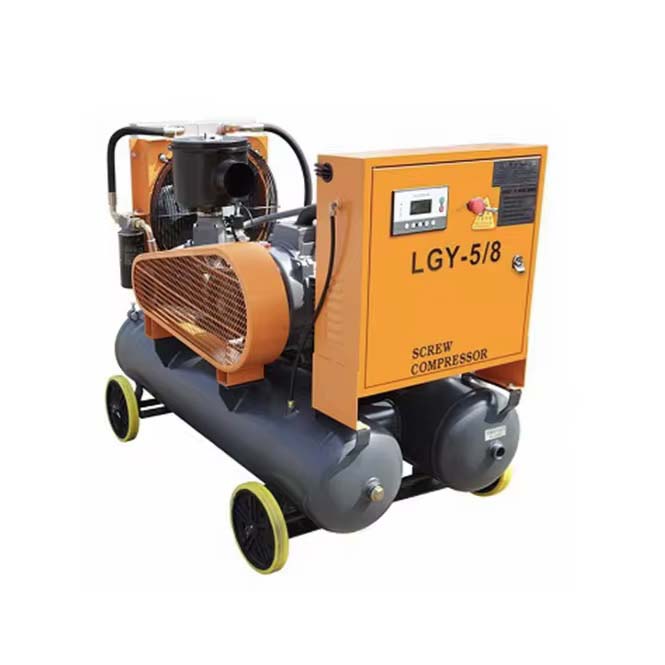

| LGY-5/8 | 0.8 | 5.0 | 30 | G1x2 | 440 | 1480x900x1115 |

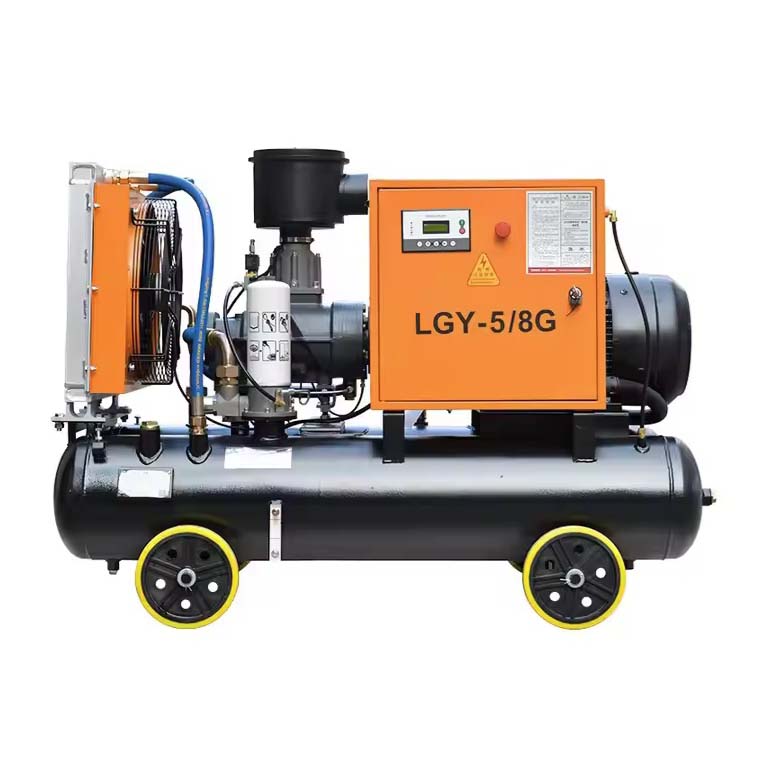

| LGY-5/8G | 0.8 | 5.0 | 30 | G1x2 | 480 | 1570x900x1130 |
| LGCY-5/8 | 0.8 | 5.0 | Xichai 50 HP | G1x1,G1/2x1 | 740 | 1660x1020x1610 |
| LGY-5/8GT | 0.8 | 5.0 | 30 | G1x2 | 460 | 1570x900x1130 |
